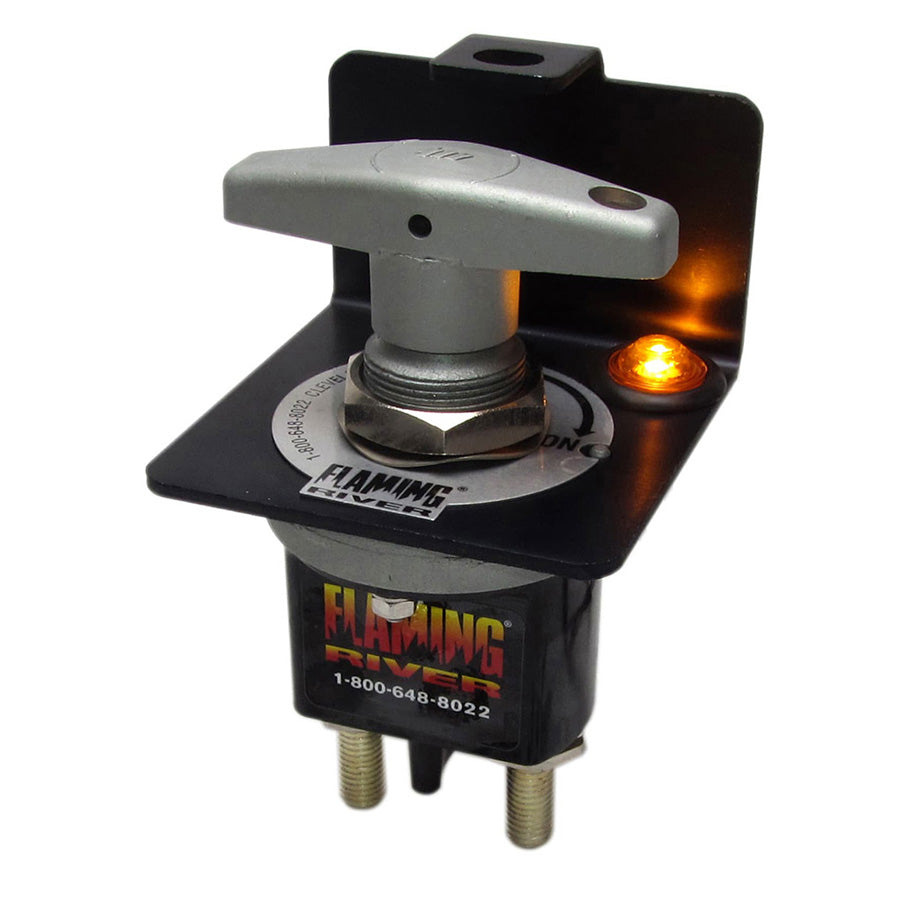

The Big Switch with Lock-Out Bracket and LED Indicator

The Big Switch with Lock-Out Bracket and LED Indicator

Regular price $140.00 USD
Regular price $148.75 USD Sale price $140.00 USD
Sale Sold out
Shipping calculated at checkout.

Please note - this part has superseded part # FR1005LED


The "Big Switch" is now available with an illuminated LED that easily indicates whether the system is on or off for proper shut down procedures.

  • LED Indicator Light - Clear indicator that system is on
  • Rated Capacity 2500 amps/250 continuous
  • Stainless Steel Fasteners for corrosion resistance
  • 0.95" terminal stud length
  • Waterproof
  • Silver plated copper internal contact plates
  • M10 studs
  • Lock-out feature enables use of padlock for OSHA Lock-out/tag-out compliance
Part No. FR1044LED
Max Continuous Current 250 Amps
Max Surge Current 2,500 Amps (5 seconds)
Environmental Protection Rating IP65
Water Resistant Yes
Operating Temperature Range -40°C to +80°C / -40°F to +176°F
Contact Terminals Silver-Plated Copper
Contact Hardware Nickel-Plated Brass

Note: Terminals on battery disconnect switch are a live part of the electrical system and should be treated like battery terminals. Covers are recommended (not included). Contact vehicle manufacturer to determine proper placement and suitability for your application.
