The Big Switch with Extension Handle
The Big Switch with Extension Handle
Regular price
$165.00 USD
Regular price
$174.11 USD
Sale price
$165.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

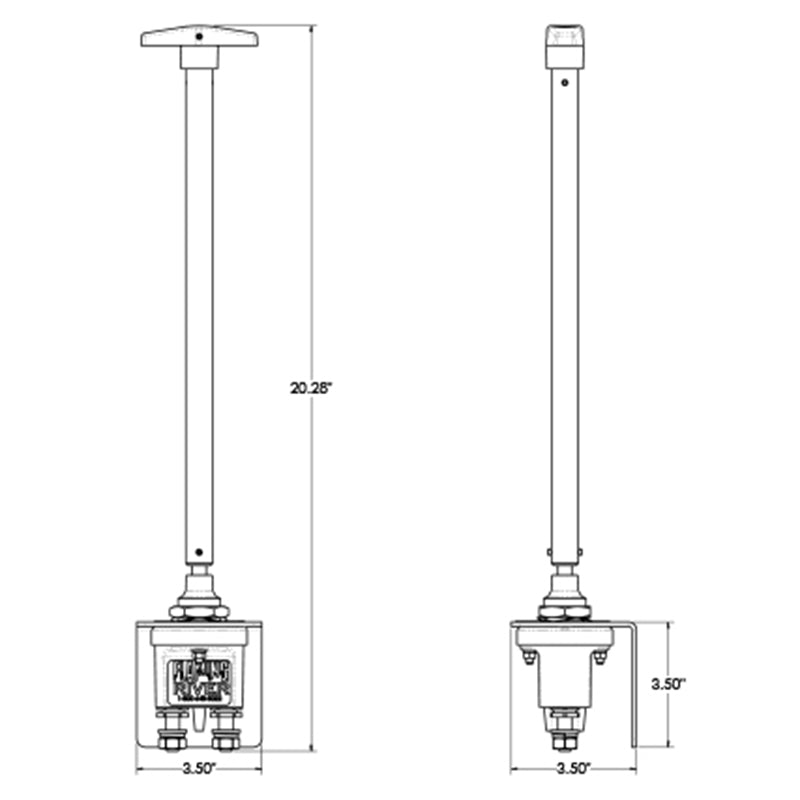

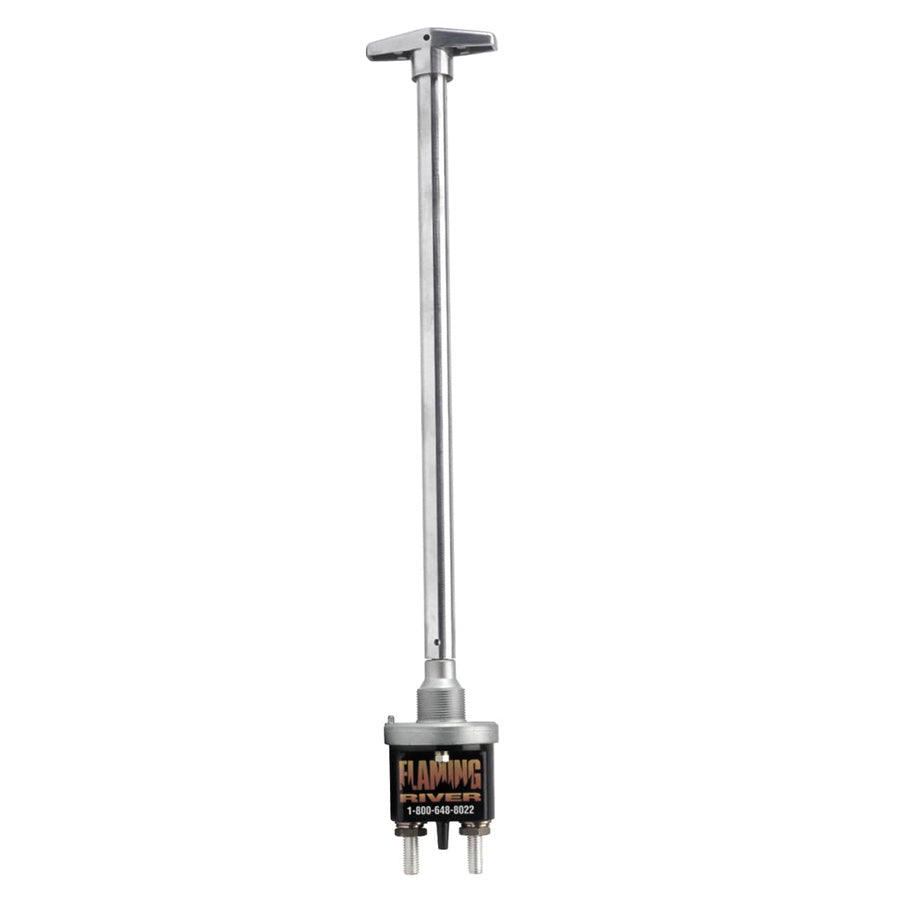

The Big Switch is a heavy-duty battery disconnect switch rated at 250 Amps of continuous service in 12V, 16V, and 24V systems. The Big Switch is manufactured with silver plated electrical contacts and a sealed, water resistant design that is able to withstand the most severe operating conditions. This kit includes a 14-1/4” long aluminum extension handle.
Top racers realize that using a low amp switch creates resistance and actually reduces power. Flaming River's heavy duty battery disconnect switch is top of the line designed for complex electrical systems and 16 Volt batteries.
| Part No. | FR1003-4 |
| Max Continuous Current | 250 Amps |
| Max Surge Current | 2,500 Amps (5 seconds) |
| Environmental Protection Rating | IP65 |
| Water Resistant | Yes |
| Operating Temperature Range | -40°C to +80°C / -40°F to +176°F |
| Contact Terminals | Silver-Plated Copper |
| Contact Hardware | Nickel-Plated Brass |
| Additional Notes | Approved for NHRA/IHRA competition use |
| Available Stud Length | 0.775" (approx. 25/32 in.) |
| Extension Handle/Lever | Yes |
| Extension Part No. | FR1003-EXT |
| LED On/Off Indicator | No |
| Lock-Out Capability | No |
| Max Tightening Torque | 11-13 ft. lbs. |
| Mounting Bracket Included | No |
| Mounting Bracket Part No. | FR1007 |
| Stud Diameter | M10 |
| Terminal Covers Included | No |
| Terminal Covers Part No. | FR1003TM (pair) |
| Voltage | 12V/24V |
