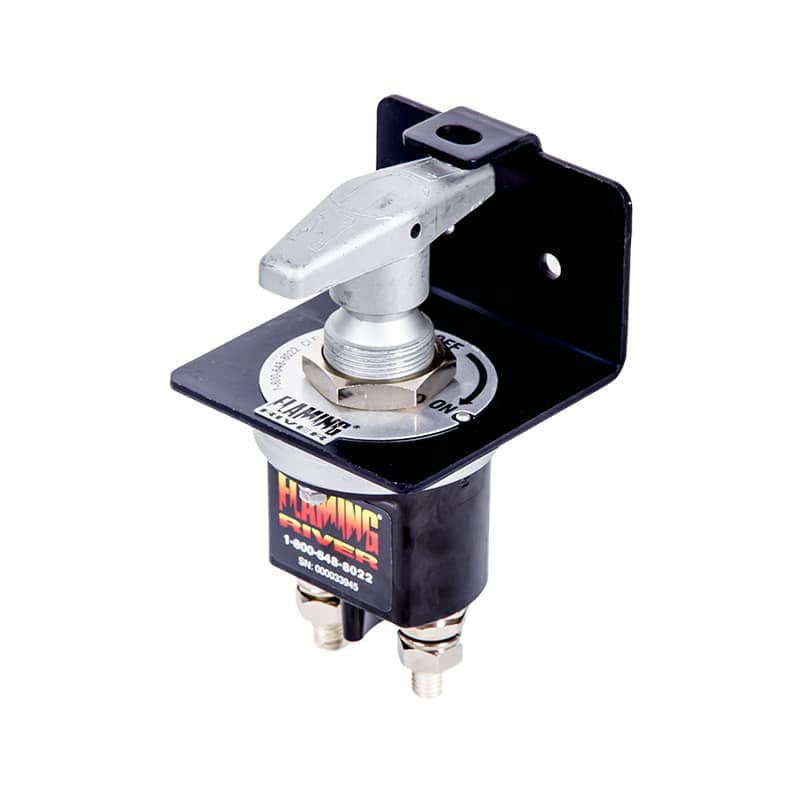

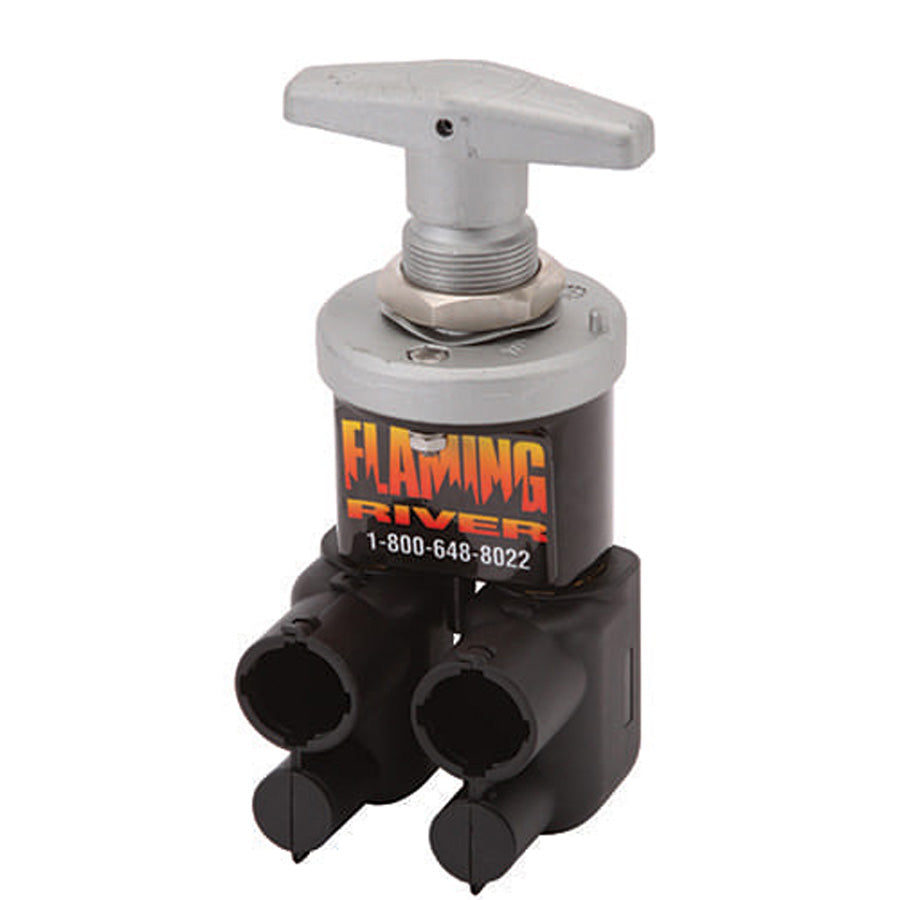

HD Amp Switch with Terminal Covers and Lock-Out Bracket
HD Amp Switch with Terminal Covers and Lock-Out Bracket
Regular price
$142.75 USD
Regular price
$150.81 USD
Sale price
$142.75 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

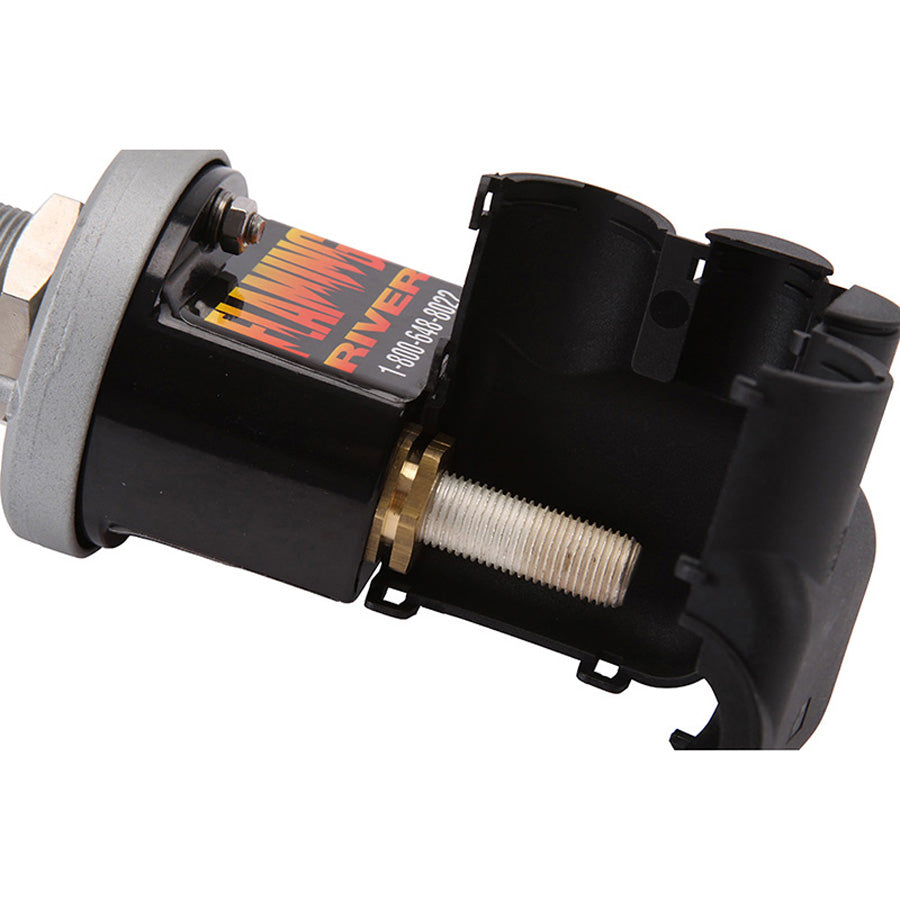

Heavy-duty battery disconnect switch with larger diameter terminal studs. Ideal for Class 8 Trucks, RVs, Chippers and other construction vehicles. Higher Amp capacity – 2500 amps/350 continuous. Clip on terminal covers are designed to protect against arcing. Propietary brass attaching nut allows 180 degree rotation.
Part No. | FR1043 |
Max Continuous Current | 350 Amps |
Max Surge Current | 2,500 Amps (5 seconds) |
Environmental Protection Rating | IP65 |
Water Resistant | Yes |
Operating Temperature Range | -40°C to +80°C / -40°F to +176°F |
Contact Terminals | Silver-Plated Copper |
Contact Hardware | Stainless Steel |
Additional Notes | Ideal for Class 8 vehicles. Increased insulation for H Class Rating. |
Available Stud Length | 1.50" |
Extension Handle/Lever | No |
LED On/Off Indicator | No |

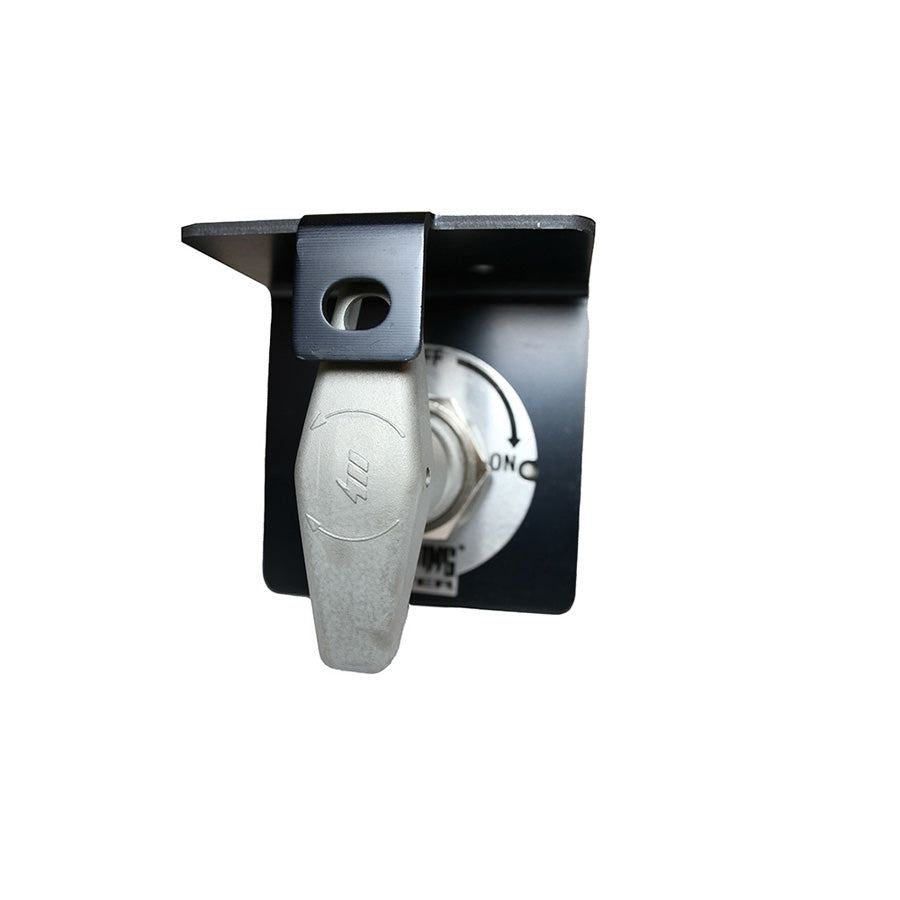

Lock-Out Capability | Yes - Padlock (not included) |
Max Tightening Torque | 11-13 ft. lbs. |
Mounting Bracket Included | Yes |
Mounting Bracket Part No. | FR1008 |
Stud Diameter | M12 |
Terminal Covers Included | Yes |
Terminal Covers Part No. | FR1014TM (pair) |
Voltage | 12V/24V |
Note: Terminals on battery disconnect switch are a live part of the electrical system and should be treated just like battery terminals. Contact vehicle manufacturer to determine proper placement and suitability for your application.
