Dual Battery Disconnect Switch
Dual Battery Disconnect Switch
Regular price
$115.00 USD
Regular price
$124.27 USD
Sale price
$115.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

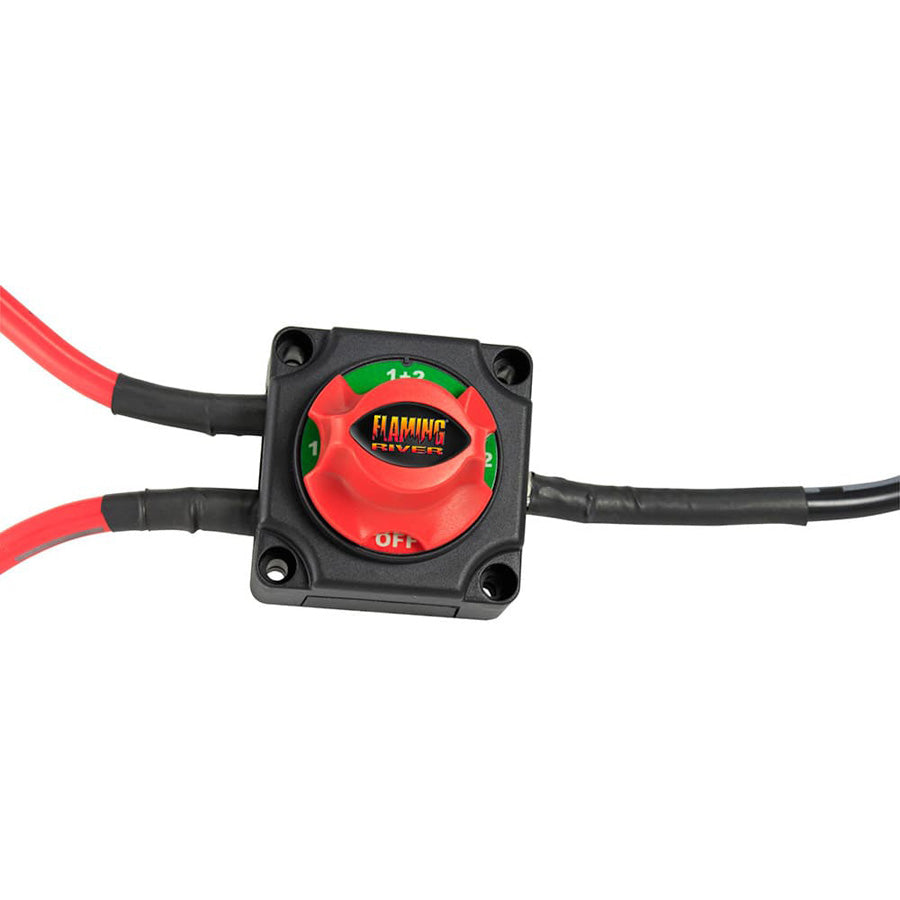

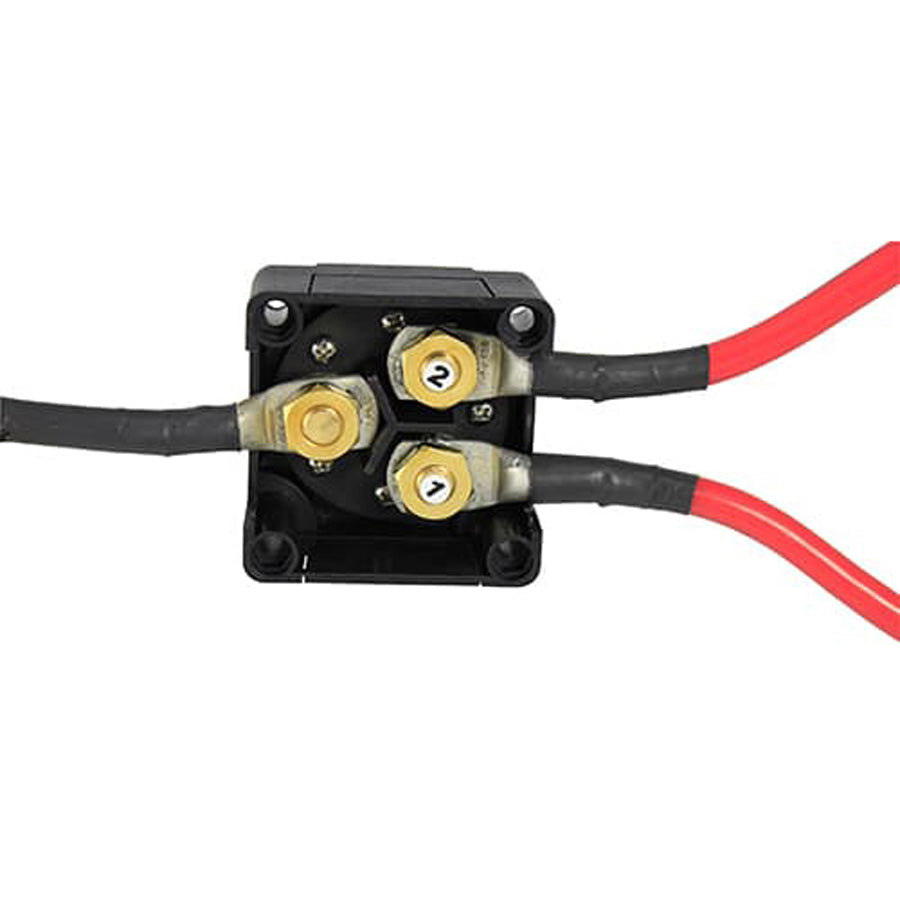

The Dual Battery Disconnect Switch allows for two batteries to operate independent of one another, or for both to be in the ON or OFF position at the same time. The FR1050 is rated for 300 Amps of continuous operation and 1000 Amps for 5 second surges. Designed for 12V and 24V systems.
- 12 or 24 Volts
- IP 54 Rating
- 300 Amps Continuous @12V
- 150 Amps Continuous @ 24V
- 1000 Amps Surge for 5 Seconds @ 12v
- 500 Amps Surge for 5 Seconds @ 24V
| Part No. | FR1050 |
| Max Continuous Current | 300 Amps |
| Max Surge Current | 1,000 Amps (5 seconds) |
| Environmental Protection Rating | IP54 |
| Water Resistant | No |
| Operating Temperature Range | -40°C to +50°C / -40°F to +122°F |
| Contact Terminals | Copper |
| Contact Hardware | Brass |
| Available Stud Length | 0.50" |
| Extension Handle/Lever | No |
| LED On/Off Indicator | No |
| Lock-Out Capability | No |
| Max Tightening Torque | 11-13 ft. lbs. |
| Mounting Bracket Included | No |
| Stud Diameter | M10 |
| Switch Modes | 4 Modes: #1 On, #2 On, Both On, Both Off |
| Terminal Covers Included | No |
| Voltage | 12V/24V |
