Combination Magneto & Battery Kill Switch
Combination Magneto & Battery Kill Switch
Regular price
$195.00 USD
Regular price
$207.34 USD
Sale price
$195.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Two Switches in One!
Dual circuit switch simultaneously shuts down both the battery and magneto. Waterproof spring-loaded design with silver plated brass contacts. Rated at 250 Amps continuous service, 2500 Amps for 5 second surges. Accepted for NHRA/IHRA competition use. Furnished with an easy grip T-Handle and anodized aluminum mounting bracket.
Part No. | FR1010 |
---|---|
Max Continuous Current | 250 Amps (battery) / 50 Amps (magneto) |
Max Surge Current | 2,500 Amps (5 seconds) |
Environmental Protection Rating | IP65 |
Water Resistant | Yes |
Operating Temperature Range | -30°C to +60°C / -22°F to +140°F |
Contact Terminals | Silver-Plated Copper |
Contact Hardware | Brass |

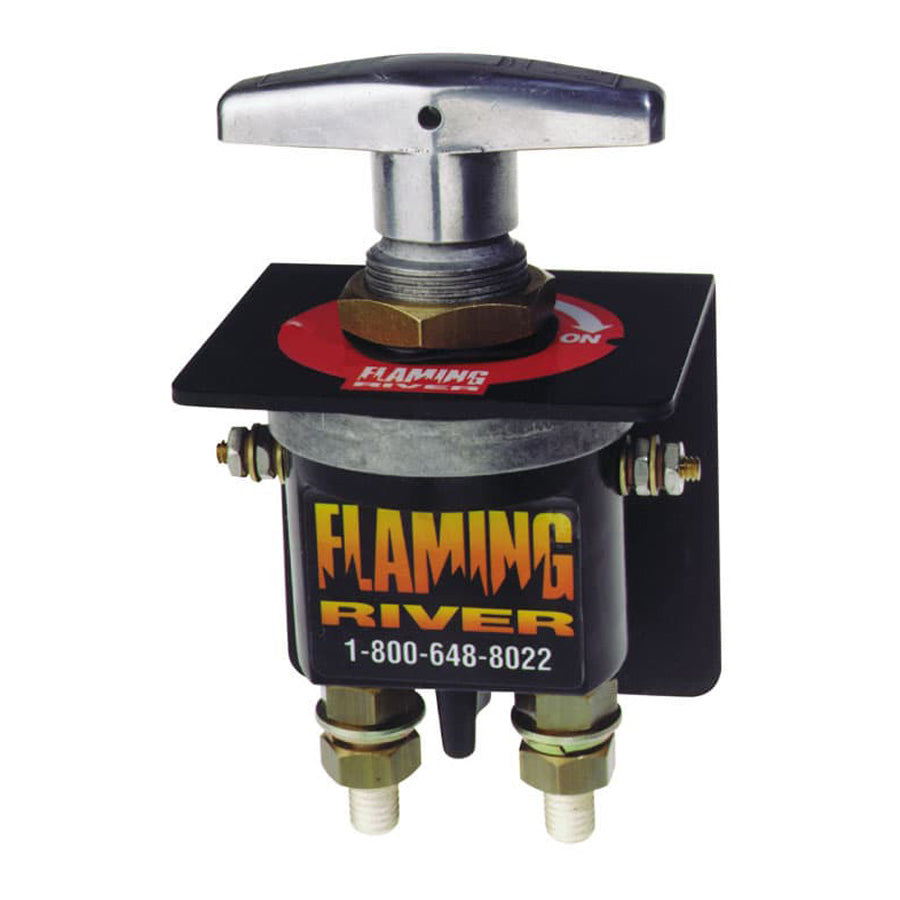

![Combination Magneto & Battery Kill Switch](http://www.jtpartsshop.com/cdn/shop/files/x_fc4da623-bd60-4cc4-adc2-88845f0a60bc.jpg?v=1697559284&width=1445)

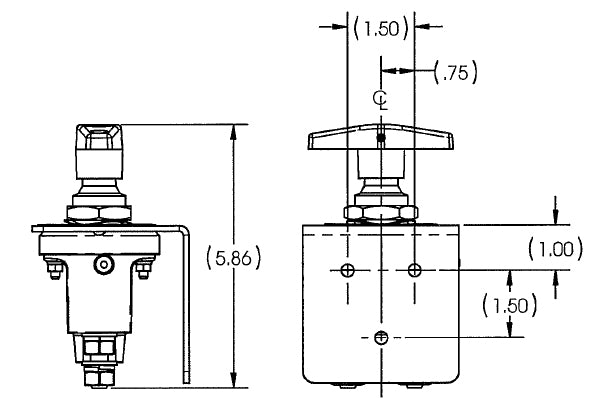

![Combination Magneto & Battery Kill Switch](http://www.jtpartsshop.com/cdn/shop/files/x1_34afcc17-c327-4f06-8063-2e0ea48fd649.jpg?v=1697559283&width=1445)
