Big Switch 500 with Lock-Out Bracket and LED Indicator

Big Switch 500 with Lock-Out Bracket and LED Indicator

Regular price $172.50 USD
Regular price $180.08 USD Sale price $172.50 USD
Sale Sold out
Shipping calculated at checkout.

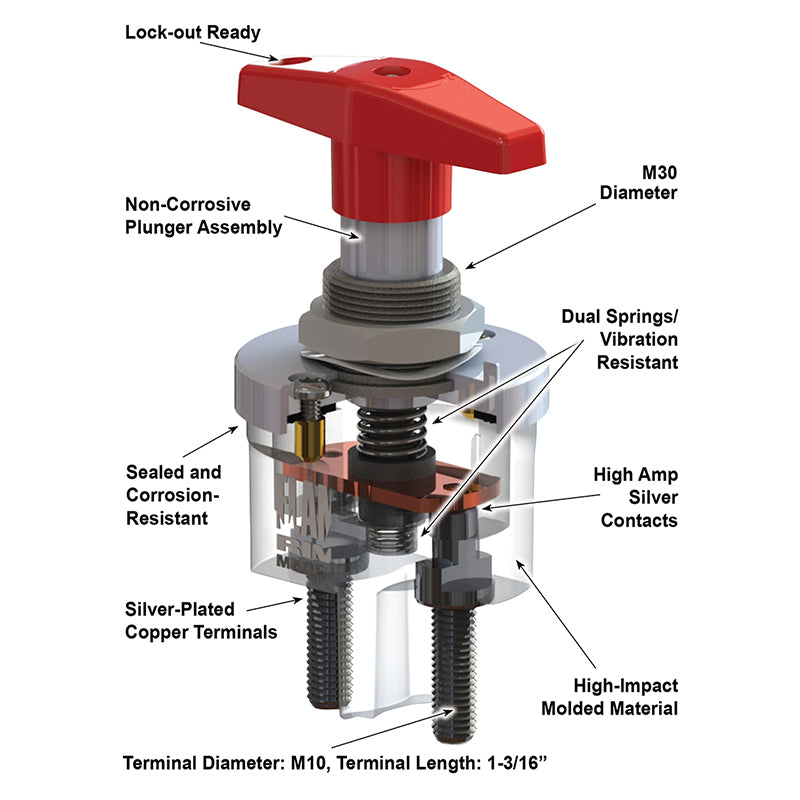

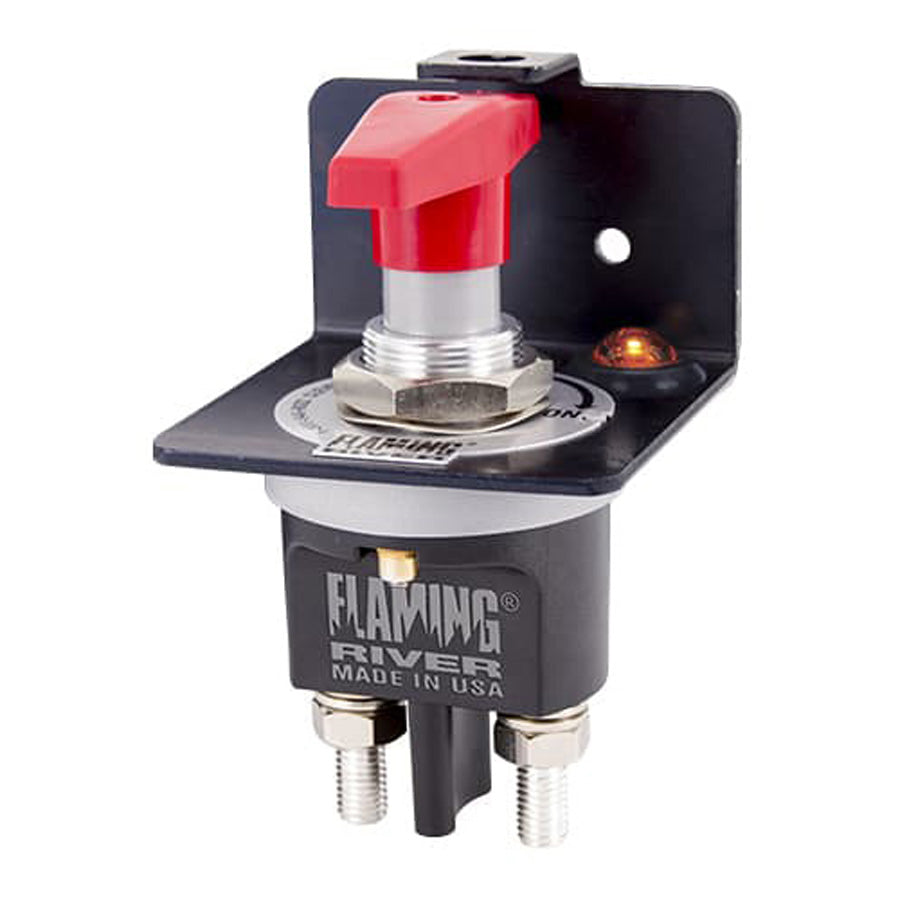

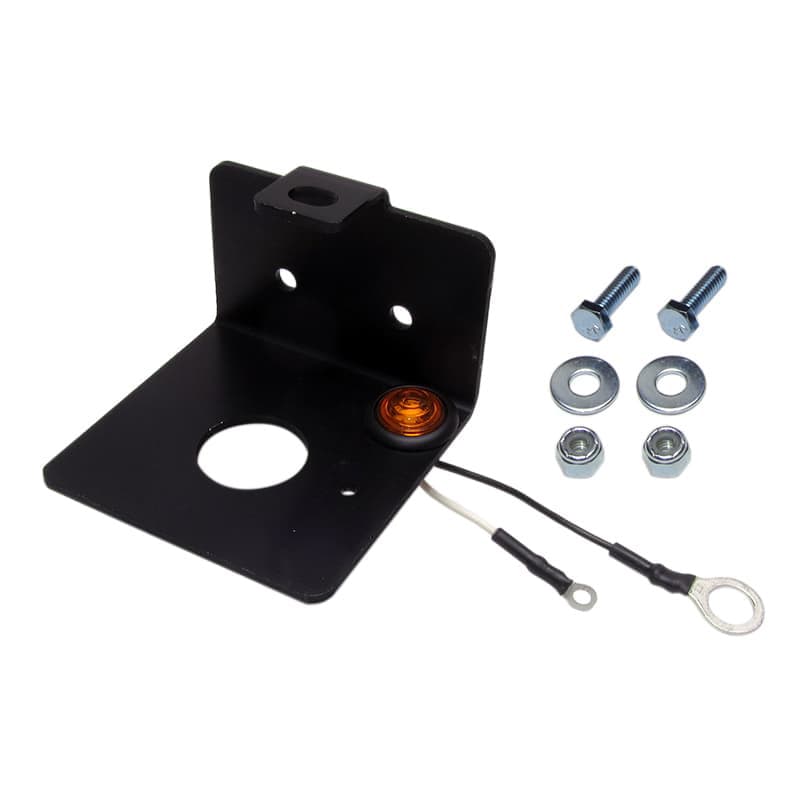

The Big Switch 500 is a heavy-duty switch which boasts a 500 Amp continuous rating due to its unique internal silver tin oxide pads and silver-plated terminals. The rugged body is made from glass-filled nylon for impact resistance and extreme temperature resistance. The Big Switch 500 can withstand extreme vibration; making it ideal for both the racing and heavy-duty trucking markets. The FR1046LED comes with our LED lock-out bracket for compliance with OSHA lock-out/tag-out regulation 1910.147 and convenient system power ON/OFF indication.


Part No. FR1046LED
Max Continuous Current 500 Amps
Water Resistant Yes
Operating Temperature Range -40°C to +80°C / -40°F to +176°F
Contact Terminals Silver-Tin Oxide Plated Copper
Available Stud Length 1.18" (approx. 1-3/16 in)
LED On/Off Indicator Yes
Lock-Out Capability Yes
Max Tightening Torque 11-13 ft. lbs.
Mounting Bracket Included Yes
Stud Diameter M10
Voltage 12/24V
